Walls & Panels

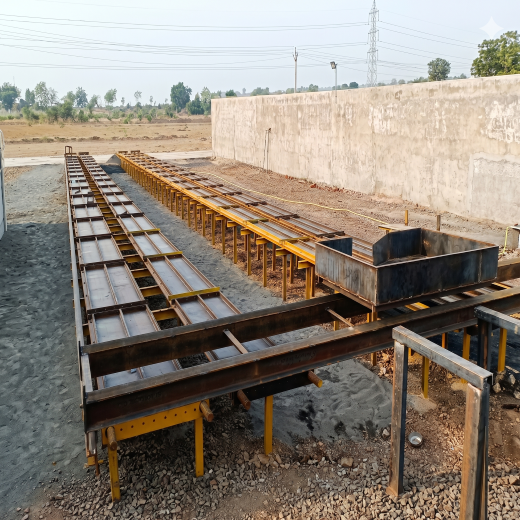

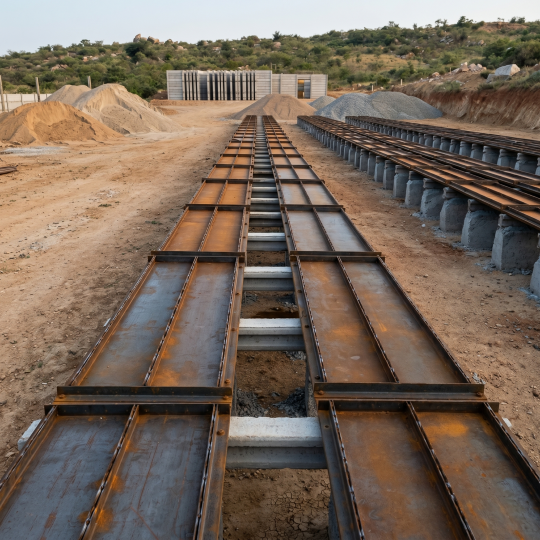

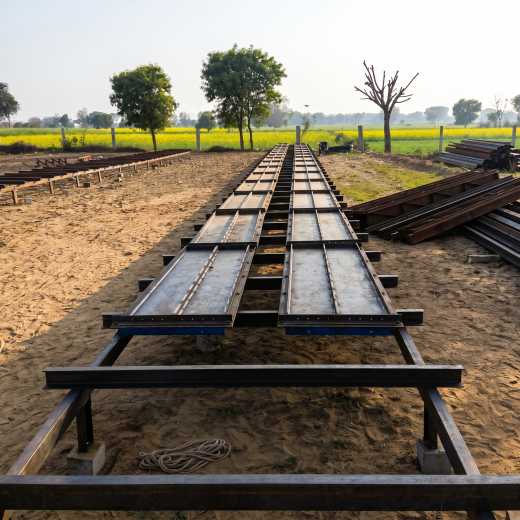

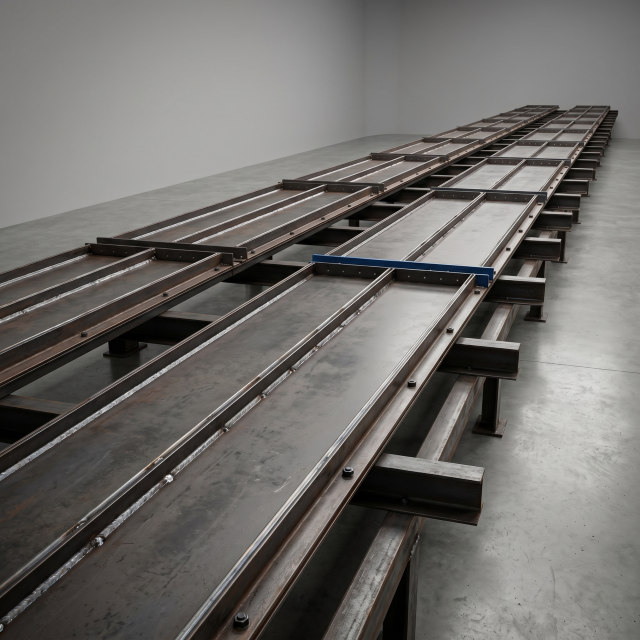

Boundary Wall Moulds for casting precast concrete compound wall panels and columns. The set includes panel moulds (7ft × 1ft, 50mm thick) and column moulds (6in × 6in, 10ft high) built from 4mm MS plate reinforced with 50mm × 50mm × 6mm angle iron. High production capacity of 16 or 21 panels per casting cycle makes this the preferred choice for contractors running large compound wall projects across Gujarat.
Suitable For
- Compound and boundary wall contractors
- Precast concrete panel manufacturers
- Housing society, industrial estate and factory compound projects
- Municipal and government boundary wall tenders
Specifications
Available Sizes
| Size | Note |
|---|---|
| Panel: 7ft (H) × 1ft (W) × 50mm | Standard |
| Column: 6in × 6in × 10ft (H) | Standard |
| Material | MS Iron (Mild Steel) - 4mm plate |
|---|---|
| Finish | Grey colour coated |
| Plate Thickness | 50mm (panel) | 4mm plate |
| Production Capacity | 16 pcs / 21 pcs per casting cycle |
| Custom Size | Available on request |
| Custom Size Note | Non-standard panel height, width, thickness or column dimensions available on request. |
| Angle Reinforcement | 50mm × 50mm × 6mm |
| Column Plate | 4mm |
